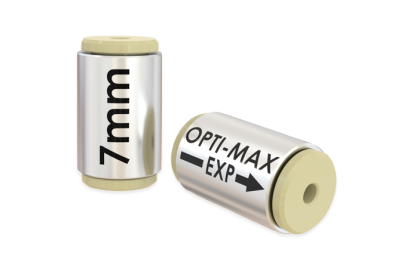

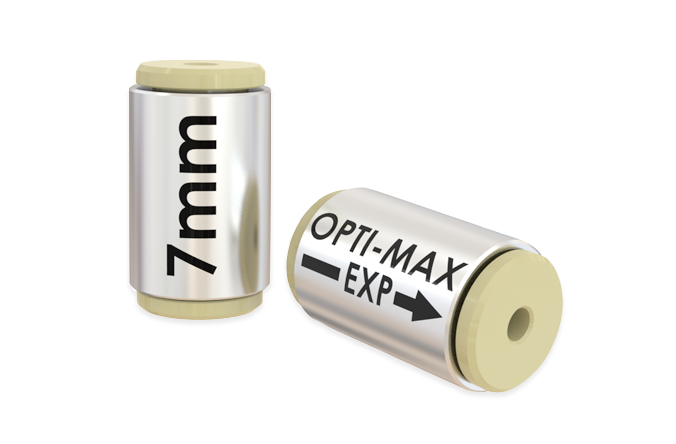

OPTI‐MAX® EXP® 7mm Replacement Cartridges
Die neuen OPTI‐MAX EXP 7mm Replacement Cartridges von Optimize Technologies sind eine wunderbare Alternative zu den Originalteilen.
Die folgende Pressemitteilung fasst alle Eigenschaften und Vorteile kurz für Sie zusammen.
Oregon City, OR – July 12, 2021 – Optimize Technologies, a leading provider of premium UHPLC, HPLC and LC/MS parts and consumables, is proud to introduce the new OPTI‐MAX® EXP® 7mm Replacement Cartridges for Thermo/ Dionex/Gyncotek Ultimate 3000 Series pumps, that retails for less than the OEM cartridge offered by Thermo and third‐party suppliers.
The new OPTI‐MAX EXP 7mm Replacement Cartridges utilize proprietary OPTI‐MAX technologies with 316 stainless steel (SS), PEEK and Zirconia wetted materials for complete compatibility and reliability at HPLC and UHPLC pressures over 20,000 PSI. The OPTI‐MAX Check Valve Cartridge features a higher density ceramic ball and seat enabling the valve to be more responsive and seat faster in lighter solvents. Each ball and seat set is individually matched to ensure a lockand‐ key fit, guaranteeing 3 bubbles/minute or less in the industry standard nitrogen bubble test (common acceptable standards are 12 bubbles/minute or less). As with all OPTI‐MAX Check Valve products, ball travel within the cartridge is minimized to ensure quicker seating, extremely low pulsation and more accurate pump metering. The robust 316 SS cartridge body allows the OPTI‐MAX Cartridge to be easily inserted into existing OEM housings.
The combination of specialized features, innovative technology and precision manufacturing make the new OPTI‐MAX EXP Check Valve Replacement Cartridges an unbeatable choice for Ultimate 3000 Series Pumps.
For use with OEM (Dionex/ Thermo/ Gyncotek) housings only. Not compatible with OPTI‐MAX® CV Housings.
Produkt Details:
OPTI‐MAX® EXP® Replacement Cartridges für Thermo/ Dionex/ Gyncotek Ultimate 3000 Series, 2/Pk
Kompatible Modelle: Ultimate 3000 series, DGP‐3600BM, DGP‐3600RS, DGP‐3600SD, HPG‐3200RS, HPG‐3200SD, HPG‐3400RS, HPG‐3400SD, ISO‐3100BM, ISO‐3100SD, LGP‐3400BM, LPG‐3400RS, LPG‐3400SD, NCS‐3500RS, NCP‐3200RS, VF‐P20
Preis: 488 Euro
Vorsäulen und Guard Columns
Vorsäulen dienen dem Schutz hochwertiger HPLC Säulen und sind dabei sehr kosteneffizient. Um diese jedoch möglichst universell und ohne störende Einflüsse für die eigentliche Trennung zu konstruieren, hat Optimize verschiedene Lösungen erarbeitet:
OPTI-GUARD® 1 mm
OPTI-GUARD® 3 mm
OPTI-LYNX Guard
EXP-Guards für die UHPLC

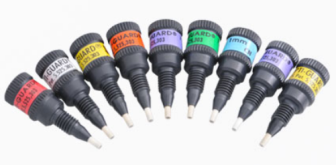

OPTI-GUARD® 1 mm sind direkt am Säulenkopf einschraubbare Einmal-Vorsäulen, die keinen zusätzlichen Halter benötigen und totvolumenarme Verbindungen garantieren. Verfügbar sind die gepackten Guards mit Materialien wie C18, C8, Silica, Phenyl, Cyano, Diol, Anionen- sowie Kationenaustauscher.
OPTI-GUARD® 1 mm
z.B. Optimize OPTI-GUARD 1mm Guard Column
C18 (Violet Label), 5/pk
Artikel-Nr.: 10-02-00007
329,- €

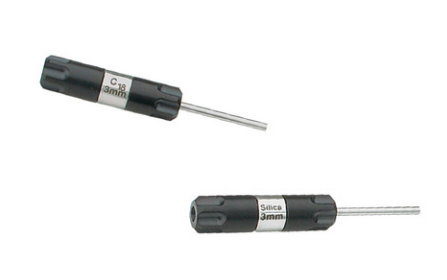

Die OPTI-GUARD® 3mm besitzen eine größere Kapazität und können ebenfalls ohne Werkzeug totvolumenarm montiert werden.
OPTI-GUARD® 3mm
z.B. Optimize OPTI-GUARD 3mm Cartridge, C18, 3/pk
Artikel-Nr.: 10-02-01482
572,- €

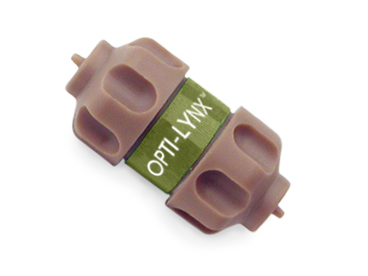

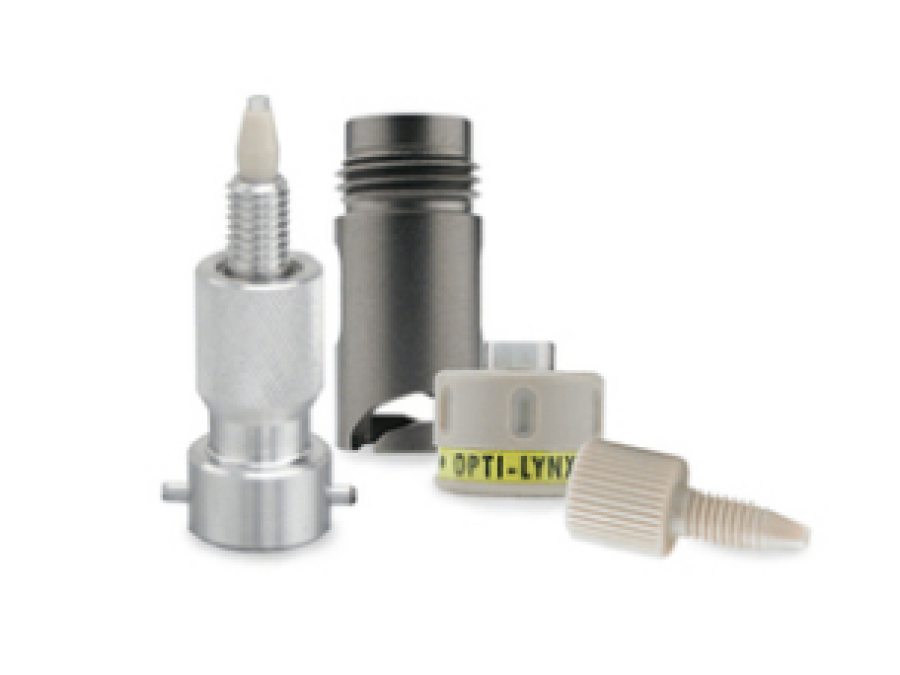

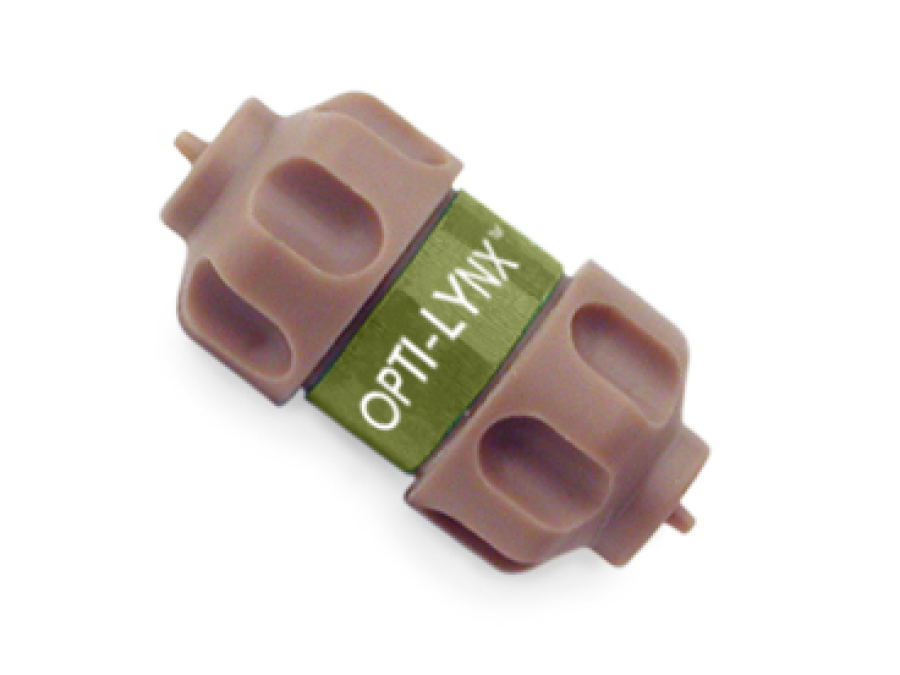

Das OPTI-LYNX Guard System ist ein variables Kartuschensystem, das sich ohne Werkzeug über einen Bajonett-Verschluss mit einer Vierteldrehung öffnen oder schließen lässt. Durch diese Technik können Drücke bis 6000 psi sicher kontrolliert werden und sie garantiert nach jedem Kartuschenwechsel eine sofortige reproduzierbare Analytik mit äußerst geringem Totvolumen.

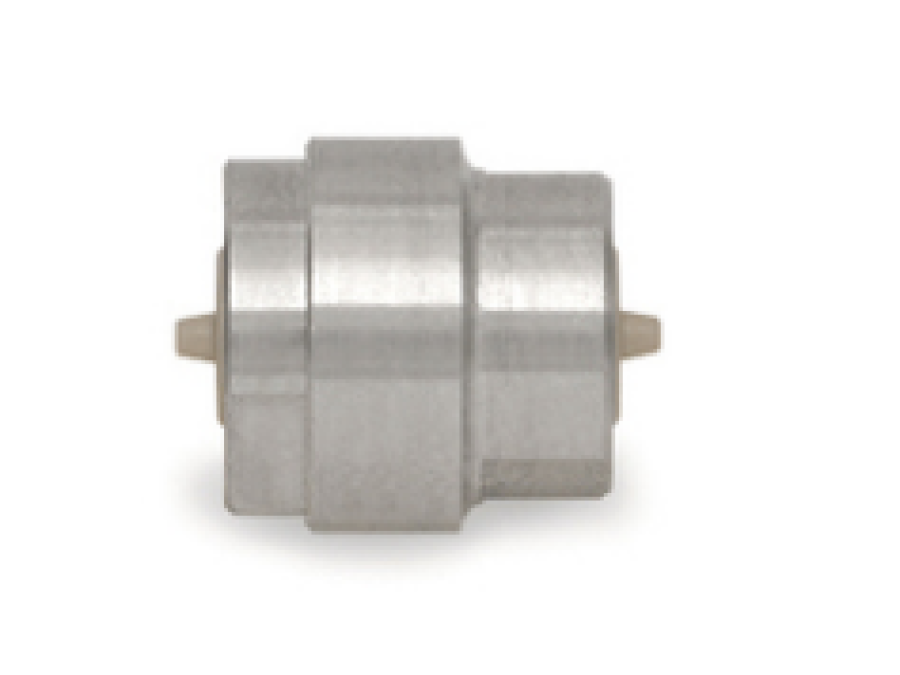

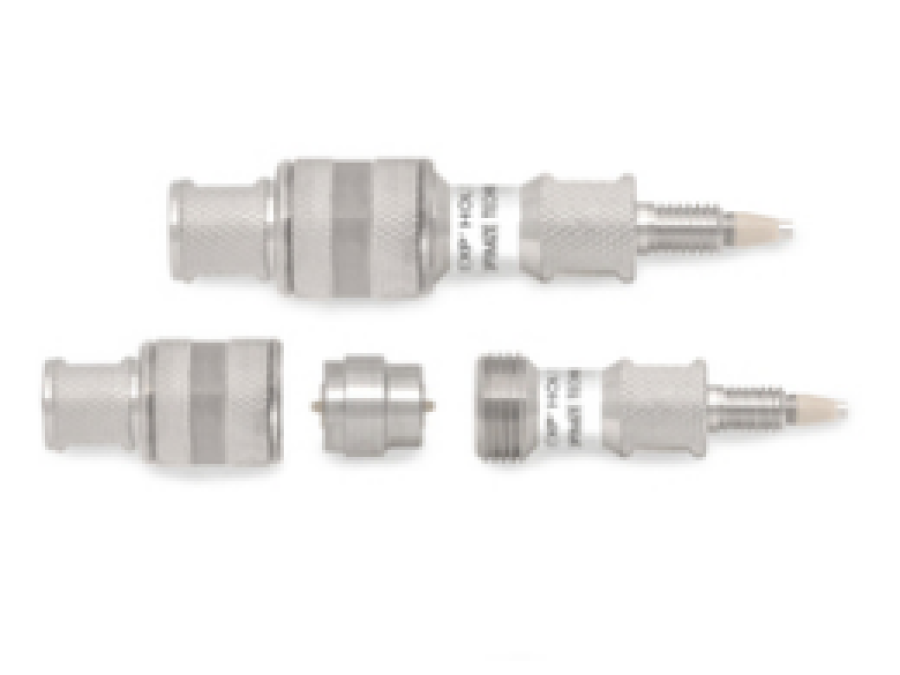

Die EXP™ Guards für U(H)PLC garantieren einen totvolumenarmen und hochdruckstabilen (bis zu 15000 psi / 1000 bar!) Schutz von meist kostenintensiven U(H)PLC-Säulen. Ebenfalls nur "Finger Tight" ohne Werkzeug zu verwenden.
Viele Zubehör-Produkte von Optimize Technologies für HPLC und UHPLC finden Sie hier in unserem Shop. Fragen Sie uns einfach, wir beraten Sie gerne.
|
|
